BASELINE – Power System Studies Experts in the UK
Integrating a solar or BESS system into the grid in Manchester? Enhancing electrical infrastructure for a data centre in London? With the right expertise, these projects can be executed with accuracy. Baseline brings that capability through advanced power system studies and power distribution services across the UK.
Our approach combines detailed steady-state and dynamic modelling with strict compliance to UK Grid Codes (G99/G100) and ENA standards such as G5/5, P28, and P29. Using advanced simulation tools, our experienced power system studies engineer team evaluates real operating conditions, protection schemes, and system behaviour. We also perform detailed validation for systems up to 400kV, supporting stable, efficient, and grid-compliant electrical networks across renewables, substations, and critical infrastructure. This further enhances low-voltage system performance through LT Electrical Services.
What Makes Our Electrical Power System Studies in the UK Stand Out?
UK Grid Compliance Expertise
In-depth alignment with UK Grid Codes (G99/G100) and ENA standards, including G5/5, P28, and P29 for faster approvals.
Advanced Simulation & Real-World Modelling
A combination of steady-state and dynamic simulations using ETAP, PSCAD,DIGSILENT and PSSE to replicate actual grid behaviour.
Engineering-Led Analysis Approach
Every project is handled by an experienced power system studies engineer, focusing on system response, protection performance, and operational reliability.
End-to-End Project Support
Covering pre-connection studies through post-commissioning controller model validation and DNO approvals.

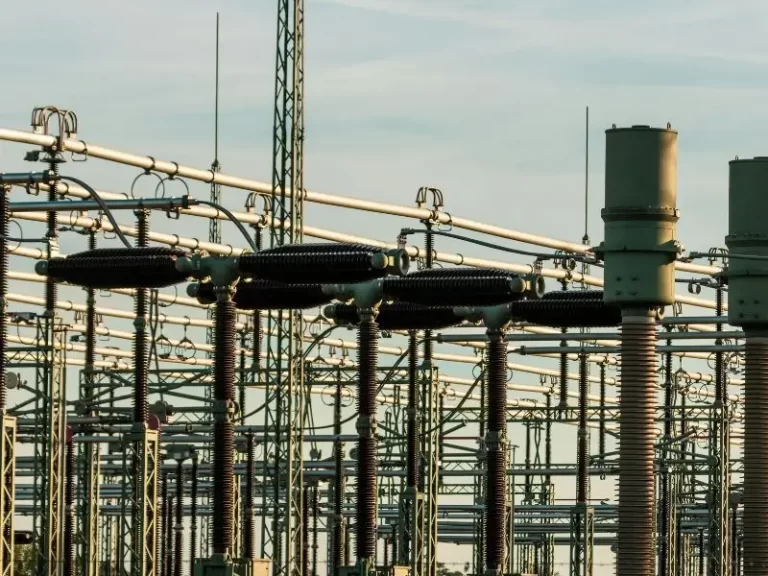

High-Voltage & Complex System Expertise
Proven capability to analyse complex electrical networks across the UK, including substations and systems up to 400kV.
Actionable & Implementation-Ready Reports
Clear, structured outputs with practical recommendations, mitigation strategies, and upgrade pathways.
Numbers That Reflect Our Power System Engineering Precision
Our Core Power System Study Solutions
Design is an important part of building construction. Therefore, it must be planned carefully. We follow a four-step approach to cover every detail and keep the consultation process transparent.
Load Flow Analysis & Reactive Power Studies
Steady-state modelling, voltage profile optimisation, and reactive power capability verification aligned with DNO requirements.
Short Circuit & Fault Level Studies
Fault current analysis and equipment rating validation at grid connection points, including systems up to 400kV.
Relay Coordination & Protection Studies
Complete relay coordination studies, including relay setting calculations, discrimination studies, and grading curve validation for fault isolation.
Power Quality & Harmonic Studies
Harmonic assessment (G5/5), voltage fluctuation (P28), and unbalance (P29) analysis for UK compliance.
Dynamic & Grid Compliance Studies
FRT analysis & G99 grid compliance validation covering fault current injection, frequency response (FSM, FSM-O, FSM-U), and voltage stability evaluation.
Arc Flash, Earthing & Lightning Protection Studies
Incident energy calculations, earthing system design (step & touch voltage compliance), and lightning protection risk assessment.
Who We Deliver Power System Studies For
Renewable Energy Projects (Solar, Wind, BESS)
Data Centres & Critical IT Infrastructure
Industrial Plants & Manufacturing Units
Utility & Grid Operators
EPC Contractors & Electrical Consultants
Commercial & Infrastructure Developments
Advanced Power System Studies for the UK’s Evolving Energy & Industrial Landscape
The UK’s transition toward renewable energy and decentralized power systems demands accurate analysis and strong grid compliance. Our power distribution services and LT Electrical Services are designed to support these evolving requirements with high technical precision.
Serving key regions across the UK, including London, Birmingham, Manchester, Leeds, and Glasgow, our team delivers:
- Detailed system modelling using ETAP, PSCAD, DIGSILENT and PSSE
- Voltage regulation and reactive power optimisation
- Protection coordination aligned with UK and ENA standards
- Integration studies for solar, wind, and BESS systems
- System validation under real operating and fault conditions
- Future-ready solutions for system expansion and upgrades
Wherever your project is located across the UK, our power system studies engineer team provides reliable power system studies and electrical power system studies. Our expertise also extends to LT Electrical Services, supporting low-voltage system protection, distribution performance, and operational reliability.
Let’s build power systems that are stable, compliant, and future-ready.
Power System Studies in the UK
What is included in electrical power system studies for UK grid connections?
They include load flow analysis, short circuit studies, relay coordination studies, harmonic analysis, and G99 grid compliance validation.
How is G99 grid compliance validated for solar and BESS projects in the UK?
Through dynamic studies such as fault ride-through (FRT), frequency response, and voltage control performance to meet UK G99 grid requirements.
Why are power system studies critical for data centres in the UK?
They support uninterrupted power, selective fault isolation, and protection coordination for mission-critical infrastructure.
How do load flow studies support industrial and utility-scale systems?
They optimize voltage profiles, generator loading, and reactive power to maintain stable and efficient operation.
What are relay coordination studies used for in UK electrical networks?
They define protection settings to achieve selective fault clearance and improve overall system reliability.
Why is short circuit analysis important for inverter-based and BESS systems?
It calculates fault contributions and supports accurate protection design for power electronic-based networks.
What standards apply to harmonic analysis in the UK?
Harmonic studies are conducted as per ENA G5/5 to control distortion and maintain power quality compliance.
How do power distribution services improve system performance?
They optimise load distribution, cable sizing, and protection schemes for efficient and reliable power delivery.
What is the role of LT Electrical Services in power system design?
They focus on low-voltage system performance, protection coordination, and operational reliability.
How do dynamic simulations support renewable integration in the UK?
They assess system behaviour during faults and disturbances to provide stable integration of solar, wind, and BESS systems.
